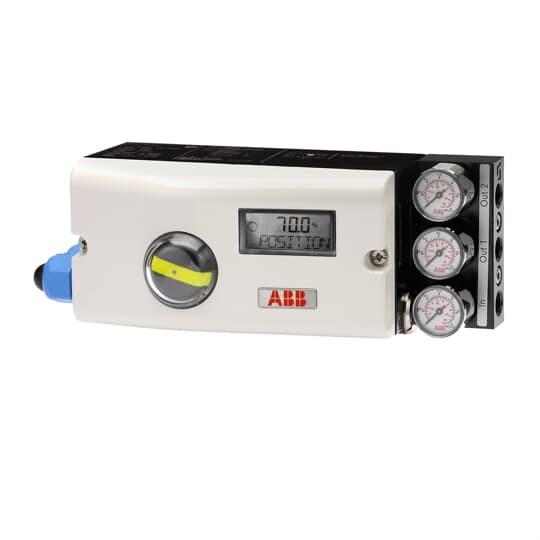

ABB V18345-1010221001 TZIDC Electro-Pneumatic Positioner Versatile Suitable

Details:

The ABB V18345-1010221001 TZIDC Electro-Pneumatic Positioner offers high precision, adaptable control, and easy commissioning. It’s versatile, suitable for various valves, and supports multiple communication options. Ideal for demanding industrial applications, it ensures optimal control and is certified for hazardous areas.

TZID/TZID-C breaks through the traditional concept of positioners, using TEIP11 as the core component, combined with microprocessing technology and built-in communication functions. It is suitable for controlling rotary and linear valves with high positioning accuracy and a large stroke range: linear stroke: 20~150mm, rotary: up to 125 degrees. Gas capacity ≥ 13.5kg/hour, gas consumption ≤ 0.03kg/hour, simplifying debugging through automatic zero point/range adjustment.

Features of ABB Valve Positioner V18345-1010221001:

- Microprocessor control, high operational accuracy, three-fault protection function (power failure, gas failure, signal failure)
- Local operation panel, two-line LCD display, and position indicator
- Local configuration and operation are simple and easy to perform
- Optional HART, FF, and Profibus communication
- Remote monitoring and parameter configuration, local modification of operating parameters
- Very convenient to set forward/reverse control modes, limit positions, etc.
- Built-in analog signal position feedback
- Analog and/or digital feedback, no external device calibration and maintenance required
- Self-diagnosis and alarm monitoring functions
- Easy fault finding conducive to preventive maintenance
- Shock and vibration resistant, can be installed in high vibration areas
- Optional fault self-locking function

Applications of ABB Valve Positioner V18345-1010221001:

ABB positioners are increasingly recognized by users, with market share increasing year by year, widely used in power, papermaking, petrochemical, water treatment, and other fields.
　　V18345-1010121001
Single-acting, fail-safe, with 4-20mA feedback two-wire system, connection 1/2-14NPT
　　V18345-1010221001
Single-acting, fail-locking (three-fault protection), with 4-20mA feedback two-wire system, connection 1/2-14NPT
　　V18345-1011121001
Single-acting, fail-safe, with 4-20mA feedback two-wire system, ib benzene explosion-proof, connection 1/2-14NPT
　　V18345-1017121001
Single-acting, fail-safe, with 4-20mA feedback two-wire system, ia benzene explosion-proof, connection 1/2-14NPT
　　V18345-1027120001
Single-acting, fail-safe, no feedback, ia benzene explosion-proof, with HART communication, connection 1/2-14NPT
　　V18345-1010520001
Double-acting, fail-locking (three-fault protection), no feedback, connection 1/2-14NPT
　　V18345-1010421001
Double-acting, fail-safe, with 4-20mA feedback two-wire system, connection 1/2-14NPT
　　V18345-1010521001
Double-acting, fail-locking (three-fault protection), with 4-20mA feedback two-wire system, connection 1/2-14NPT
　　V18345-1027420001

Common product models of ABB Valve Positioner V18345 series:

1. V18345-1010121001
2. V18345-1010221001
3. V18345-1010421001
4. V18345-1010521001
5. V18345-2010121001, 2010221001, 2010421001, 2010521001
6. V18345-2011221001, 2017221001
