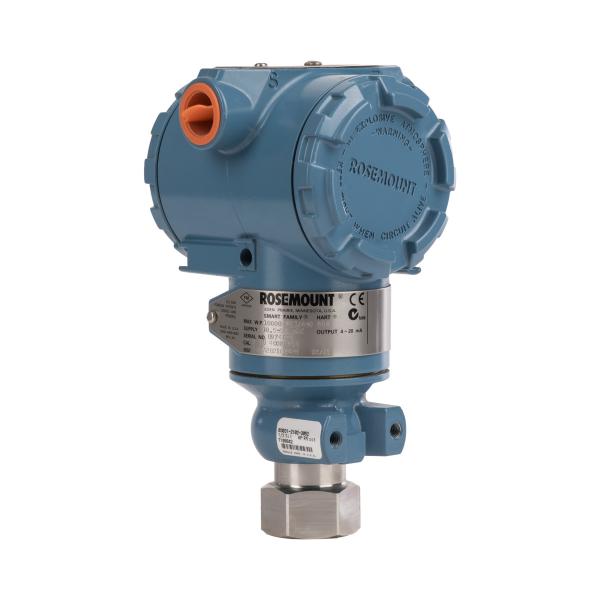

3051 Transmitter The High-Performance Gauge Pressure Transmitter for Industrial Applications

The 3051TG pressure transmitter is a common direct-mounted gauge pressure transmitter under the 3051T series

Product Overview:

The 3051TG pressure transmitter integrates sensor, electronic technology, and single isolation diaphragm design, achieving a calibration range for gauge and absolute pressure measurement from 0.3 to 10000 psi. The working principle of the 3051T pressure transmitter: during operation, the isolation diaphragm and filling liquid on the high and low-pressure sides transmit the process pressure to the filling liquid, which then transmits the pressure to the sensing diaphragm at the center of the sensor. The sensing diaphragm of the 3051 pressure transmitter is a tensioned elastic element, whose displacement changes with the applied pressure (for the 3051GP pressure transmitter, atmospheric pressure acts on the low-pressure side of the sensing diaphragm). The 3051AP absolute pressure transmitter maintains a reference pressure on the low-pressure side. The maximum displacement of the sensing diaphragm is 0.004 inches (0.1 mm), and the displacement is proportional to the pressure. The capacitive plates on both sides detect the position of the sensing diaphragm. The difference in capacitance between the sensing diaphragm and the capacitive plates is converted into the corresponding current, voltage, or digital HART (Highway Addressable Remote Transducer) output signal.

Technical Parameters:

Overall Performance: ±0.15%FS
Accuracy: ±0.075%FS
Gauge Pressure: Calibration range from 0.3 to 10000 psi
Stainless steel and Hastelloy CR process isolation diaphragm
Single isolation diaphragm design
Filling liquid: silicone oil and inert oil
Optional DIN and Autoclave compatible process connections

Features & Benefits

HART compatible for easy configuration and calibration • Comes standard with 316 stainless steel wetted materials for durability in most process applications • Local display option for easy field measurements

Typical model of 3051TG pressure transmitter:

3051TG1A2B21A

3051TG2A2B21A

3051TG3A2B21A

3051TG4A2B21A

3051TG5A2B21A

3051TG1A2B21AB4

3051TG2A2B21AB4

3051TG3A2B21AB4

3051TG4A2B21AB4

3051TG5A2B21AB4

3051TG1A2B21AB4M5

3051TG2A2B21AB4M5

3051TG3A2B21AB4M5

3051TG4A2B21AB4M5

3051TG5A2B21AB4M5

3051TG1A2B21AB4M5K5

3051TG2A2B21AB4M5K5

3051TG3A2B21AB4M5K5

3051TG4A2B21AB4M5K5

3051TG5A2B21AB4M5K5

3051TG1A2B21AB4M5E5

3051TG2A2B21AB4M5E5

3051TG3A2B21AB4M5E5

3051TG4A2B21AB4M5E5

3051TG5A2B21AB4M5E5

3051TG1A2B21AB4M5I5

3051TG2A2B21AB4M5I5

3051TG3A2B21AB4M5I5

3051TG4A2B21AB4M5I5

3051TG5A2B21AB4M5I5HR5

3051TG1A2C21AB4M5

3051TG2A2C21AB4M5

3051TG3A2C21AB4M5

3051TG4A2C21AB4M5

3051TG5A2C21AB4M5

3051TG1A2C21AB4M5K5

3051TG2A2C21AB4M5K5

3051TG3A2C21AB4M5K5

3051TG4A2C21AB4M5K5

3051TG5A2C21AB4M5K5HR5

3051TG1A2C21AB4M5E5

3051TG2A2C21AB4M5E5

3051TG3A2C21AB4M5E5

3051TG4A2C21AB4M5E5

3051TG5A2C21AB4M5E5HR5

3051TG1A2C21AB4M5I5

3051TG2A2C21AB4M5I5

3051TG3A2C21AB4M5I5

3051TG4A2C21AB4M5I5HR5
